Li-SOCl2 ER14250 1/2AA 1200mAh Lithium Thionyl Chloride Cell

No rechargeable Li-SOCl2 ER14250 Lithium Thionyl Chloride Cell 1/2AA 1200mAh 15 years

1. Battery Characteristic
High Voltage
The rated voltage of the single battery is 3.6V, the operating voltage varies with the load, normally between 3.3V and 3.6V
High Energy Density
We offer the specific energy density of 432Wh/kg
Wide Operating Temperature Range
The battery can be in work between -55℃ ~ +85℃
Stable Operating Voltage
Stable operating voltage, more than 90% of the capacity could be output with a fixed voltage
2. Main Applications
Oil & Gas
Well pressure meters, float meters, logging while drilling(LWD), measure while drilling(MWD), etc.
Military & Defence
Portable radio communications, night vision equipment & thermal images, torches & lamps, etc.
3. Bobbin Benefits
Excellent safety record, high capacity
Typical Applications
Low power consumption & long shelf life equipment,
like calculator, industrial PC CMOS, memory support power, etc.
Spiral Benefits
High discharging current, high load voltage
Typical Applications
High power consumption equipment, like water meter,indicating lights, etc.

1/2AA lithium metal battery

1200mAh lithium mno2 battery

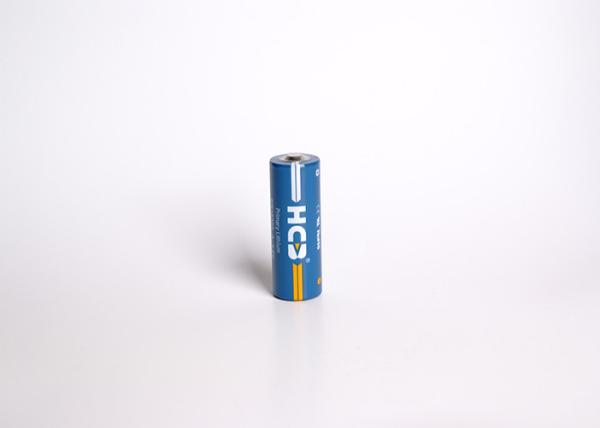

Li-SOCl2 ER14250 1/2AA 1200mAh Lithium Thionyl Chloride Cell Images
