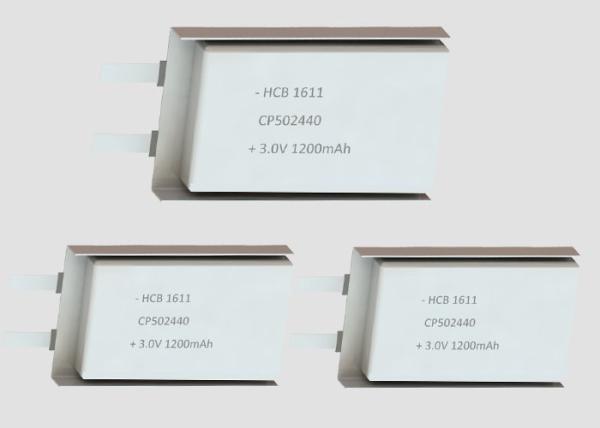

3.0 V Multicolor Screens Flexible Prismatic Pouch Cell

Brand Name : HCB

Model Number : CP502440

Certification : CE/ULUN//RoHS

Place of Origin : China

MOQ : 1K pcs

Payment Terms : T/T, L/C, PayPal

Supply Ability : Two millions units per month

Delivery Time : 10-35 work days

Packaging Details : Special design for Air/Sea/Courier transportation

Self-discharge Rate : ≤1%/year

Nominal Voltage(V) : 3.0V

Max Pulse Current(mA) : 500mA

Weight(g) : 9.0g

Nominal Capacity : 1200mAh

Maximum Continuous Current : 300mA

Applications : Consumer Electronics, Alarm Systems, GPRS/GSM Communication, ETC Systems, IoT Industry, Medical Industry And GPS Tracking, Etc

Contact Now

Extremely Thin Long Life Multicolor Screens Flexible Price Labeling Battery Cell

Nominal Capacity	1200mAh
Battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage	3.0 V
Maximum Continuous Current	300mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current	500mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition	Temperature ≤ 30℃ Humidity ≤ 75%RH
Operating Temperature	-40℃ to +60℃
Battery Dimension	See drawing on pag
Max Weight	9.0g
Self-discharge Rate	1%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life	10 years
Ambient temperature 23±2℃

1. Cp502440 Battery Characteristic

High Voltage

The rated voltage of each battery is 3.0V

High Energy Density

We provide the specific energy density up to 400Wh/kg, 50% higher than the steel-shelled lithium cell of the same weight

Wide Operating Temperature Range

We provide a wide operating temperature range, from -40℃ to +60℃

Long Shelf Life

Under the condition of normal temperature, the battery self -discharge rate of no more than 1% per year. Without voltage passivation, no activation necessary after long time storage, install-and-use immediately, free of maintenance

2. Main Applications.

1. Remote Metering

Utility Meters: Water, Gas, Electric
Automatic Meter Readers
Industrial meters / valves

2. Safety / Security

Alarm systems
Safe / Door Lockers
Detectors

3. Remote Monitoring

RFID/Asset Tracking / GPS Systems/ ESL(electronic shelf label)
Personnel ID systems
Patient Monitoring / Biotelemetry
Seismic Monitoring
High Voltage Line Fault Detectors

4. Automotive Power

Navigational Systems
Automotive sensors
Taximeters
Toll Pass Applications

5. Backup Power

Memory Backup
Encryption Keys

6. Industrial / Consumer

Clocks / Timers
Weather Stations
Telemetry Equipment
Vending Machines

3. Warning

This battery is a non-rechargeable battery.
DO NOT CHARGE THE BATTERY!
Do not use if the battery casing is damaged.
Please discharge the battery for a few minutes with 100mA.
Don't use different models of battery in series.

4. Advantages

High energy density, double that of premium alkaline
batteries
Low weight
High cell voltage
Flat discharge characteristic
Low self discharge
Very long shelf life
Very long operating life
Wide operating temperature range
Excellent durability
Small cell size

5. HCB Battery Co., Ltd. was founded in 2001. As a leading primary lithium batteries manufacturer and solution provider in China, HCB remains dedicated to leading the R&D and manufacturing of various types of primary lithium batteries.
